Name: Resideo HYDROSEP-110-F/U Hydraulic Separator, 6 in Flanged
Brand: Resideo
SKU: HONE-HYDROSEP-110-F/U
Price: 6833.57 USD
Availability: InStock

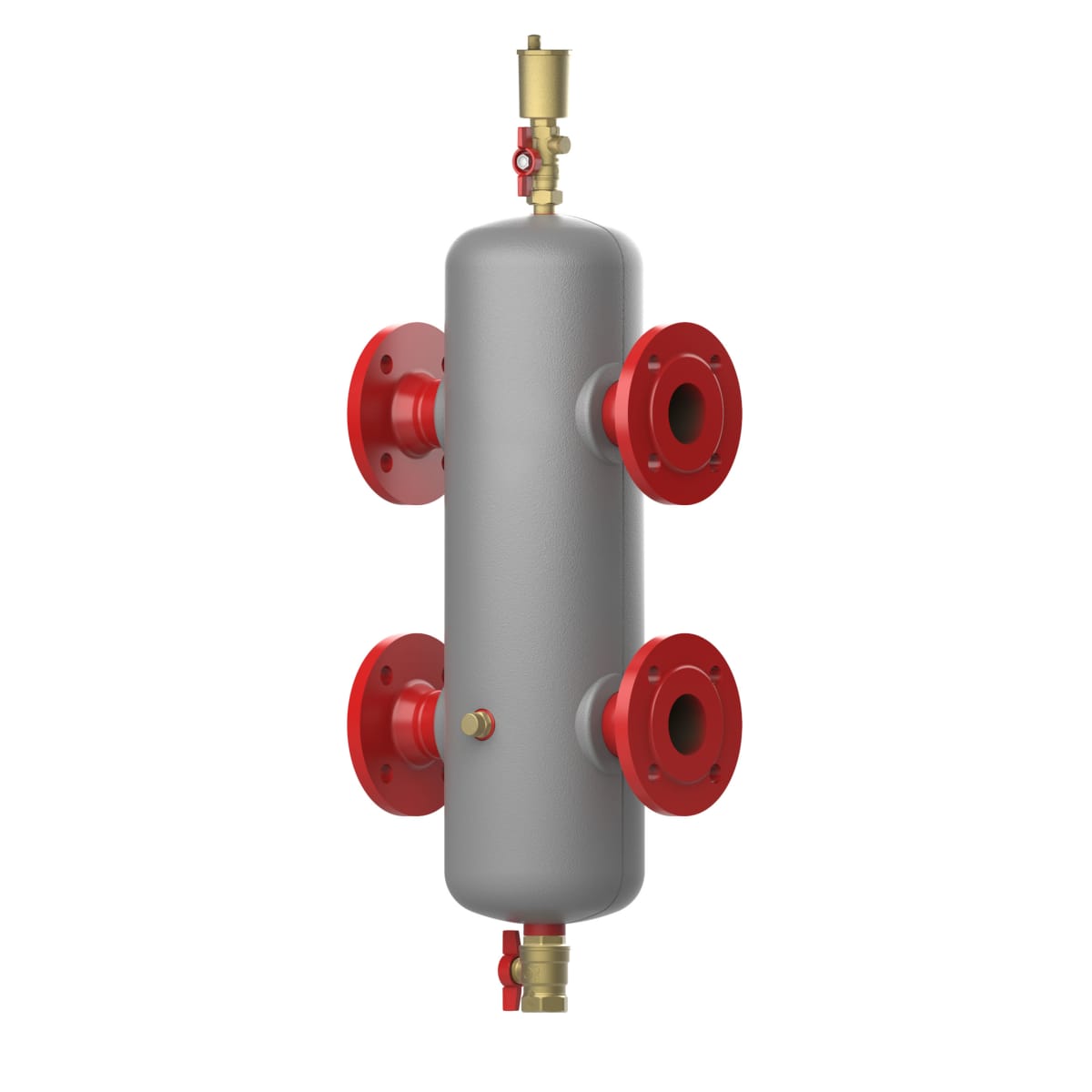

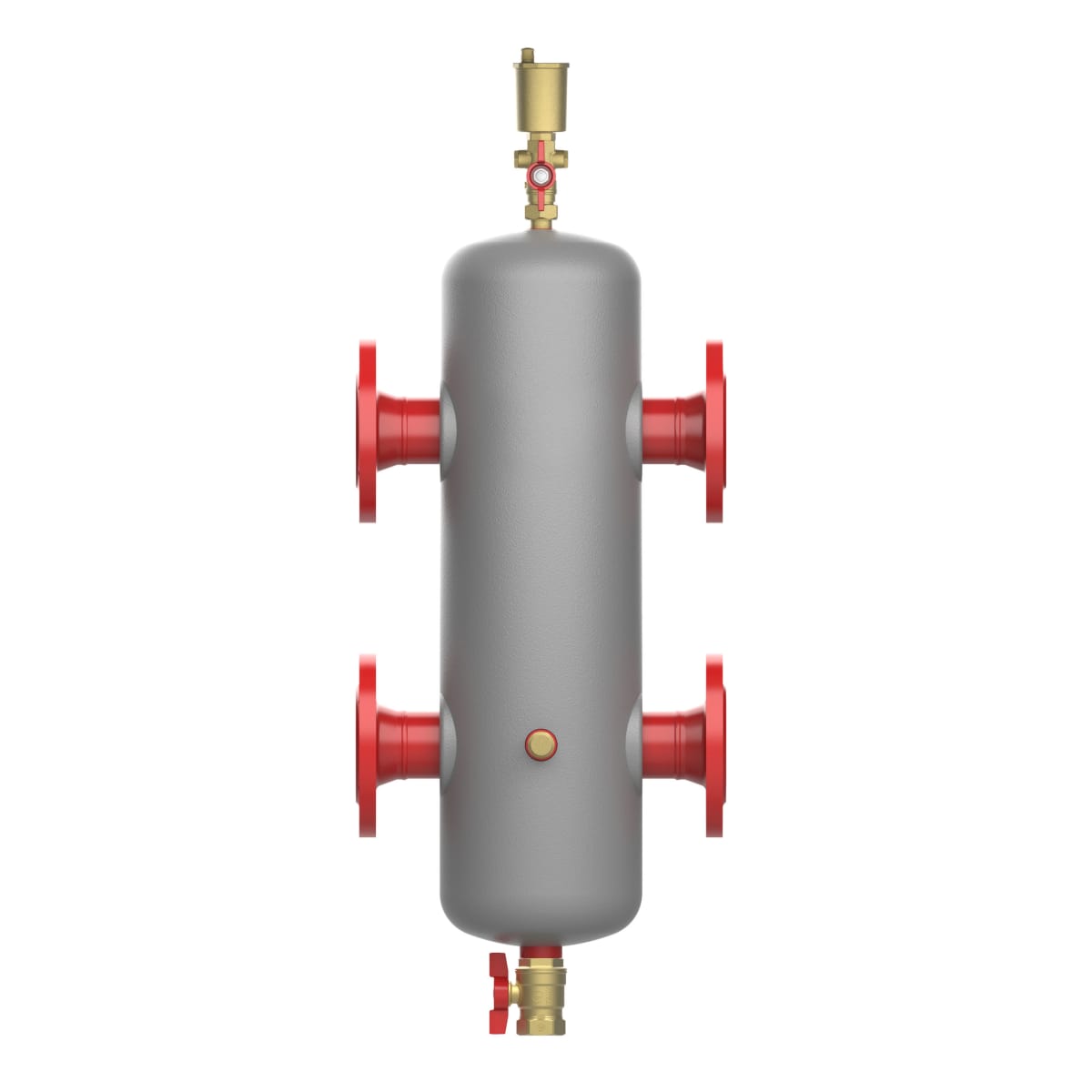

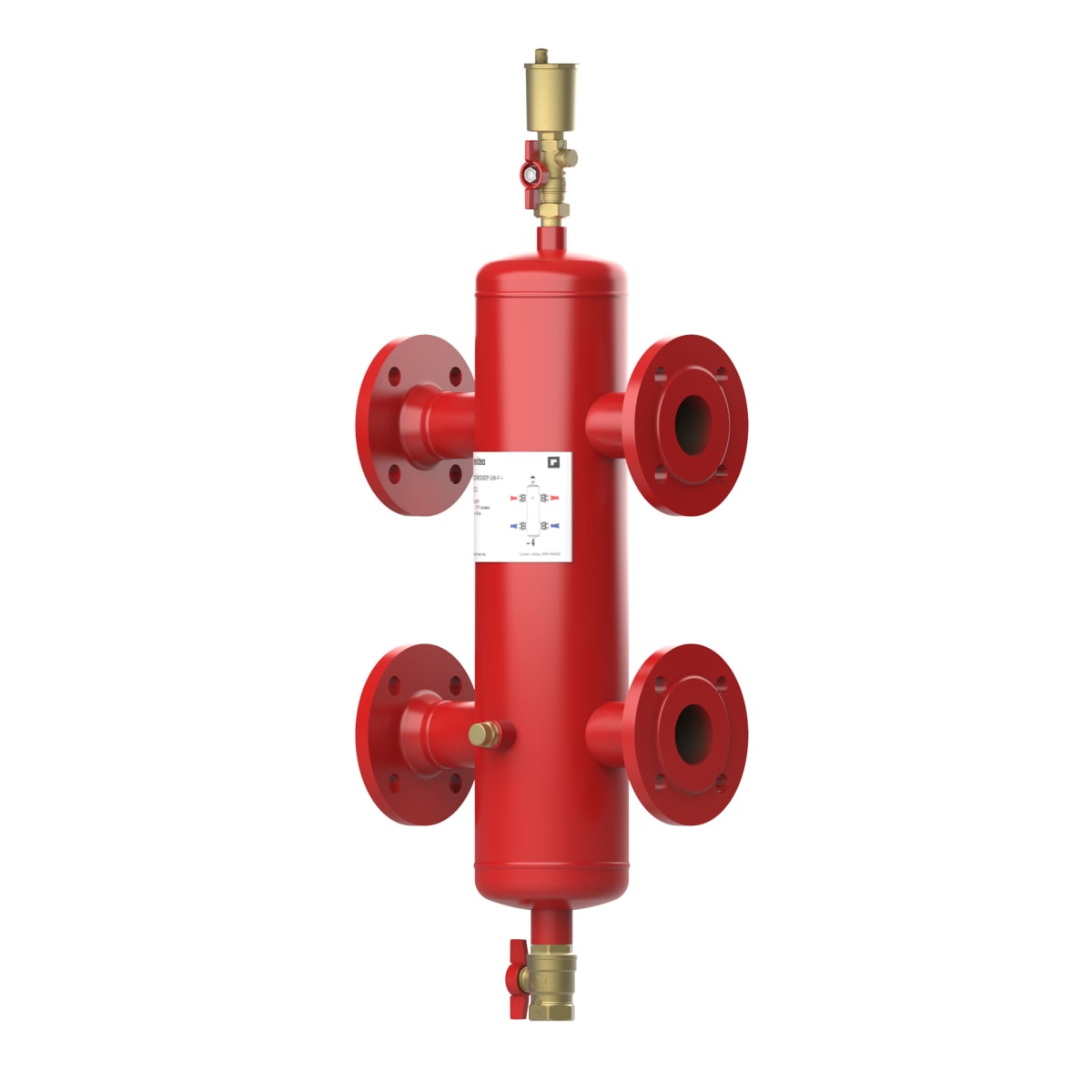

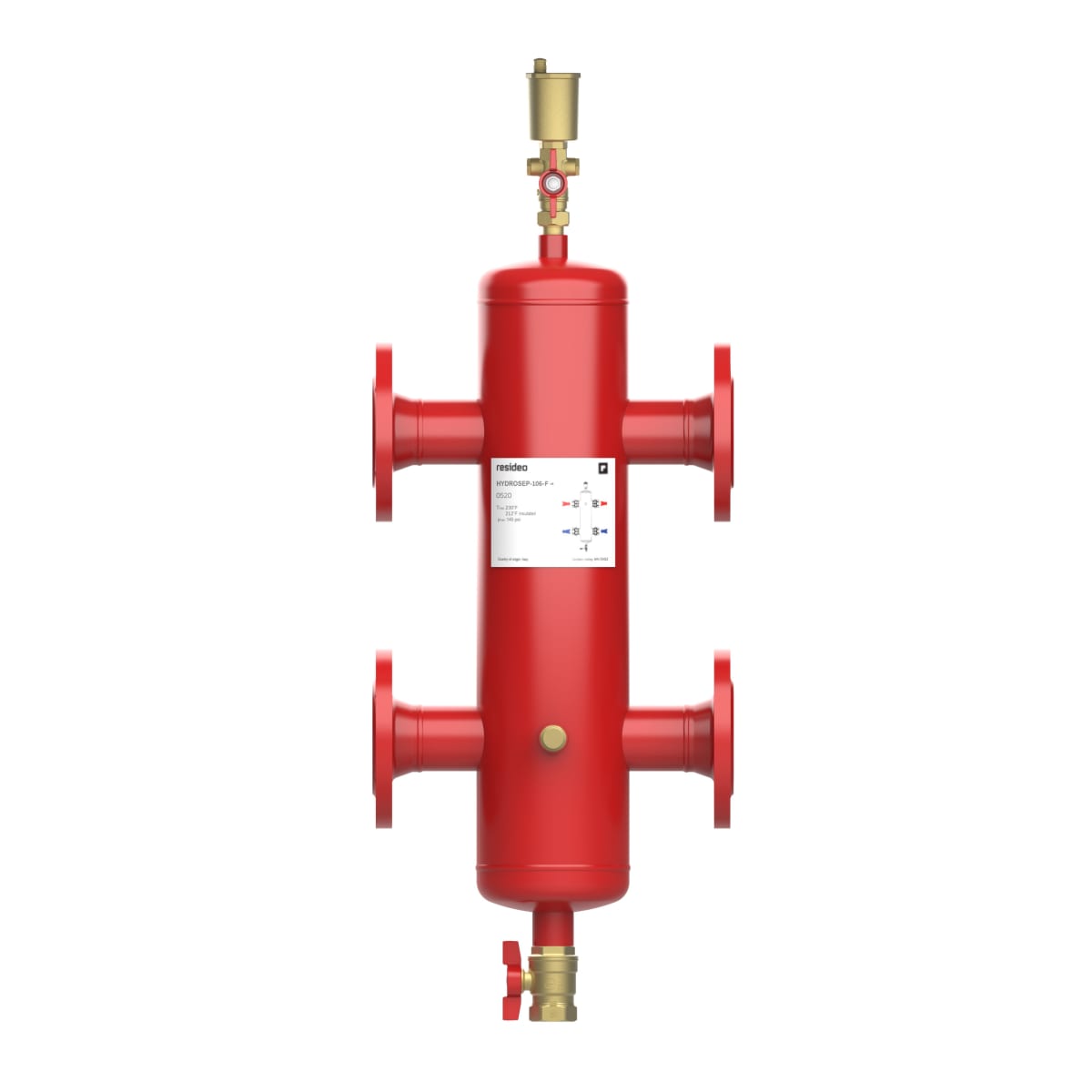

Resideo HYDROSEP-110-F/U Hydraulic Separator, 6 in Flanged

Roll over image to zoom in Click on image to zoom

Choose our magnetic hydraulic separators to boost boiler efficiency and protection in new installs or retrofit boiler systems. The options are all yours: Select a flanged or union hydraulic separator valve and choose the union connections — sweat, threaded or press. Plus, we offer a variety of sizes, 1"-6". Features include: Flanged and union models All fitting options (sweat, threaded, press – 2 connections per union kit, 2 union kits needed per valve) Multiple sizes; union (1 in to 2 in) and flanged (2 in to 6 in) Magnet (which acts as a filter and balancer) included in every model Insulation included with every model Ideal for residential and commercial applications.

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: HYDROSEP-110-F/U
Connection Type: Flange
Controlled Media: Water; 50% (maximum) Glycol Mixture
Size: 6"
Warranty: 5 Years
UPC: 194159006669
Category: Hydro Separators

Full Specifications

Controlled Media	Water, 50% (maximum) Glycol Mixture
Pipe Size	6 in.
DN Size	DN150
Separator Connection	ASME 150 lb flange
Air Vent Valve Connection	1/2 in
Connection Type	Flanged
Discharge Valve Connection	1 in
Flow Rate (Max)	418.27 gpm, 95 m3/h
Warranty	5 Years
Operating Pressure (Max)	145 psi, 10 Bar
Air Vent Operating Pressure (Max)	72 psi, 5 bar
Ambient Operating Temperature (Min)	32 °F, 0 °C
Ambient Operating Temperature (Max)	230 °F, 110 °C
Media Temperature (Min)	32 °F, 0 °C
Media Temperature (Max)	266 °F, 130 °C
Volume	28.79 gal, 109 L
Insulation Shell Thickness	0.78 in, 20 mm
Insulation Shell Material	Polypropylene
Air Vent Material	ASTM B124 UNS C37700 (CW617N EN 12165) Brass
Body Material	FE360 varnished Steel
Drain Ball Valve Material	ASTM B124 UNS C37700 (CW617N EN 12165) brass
